Blue Diamond Excavator Screening Buckets

Equipment Lines / Blue Diamond Attachments / Attachments / Excavator Attachments / Excavator Screening Buckets

Double tap to zoom

Excavator Screening Buckets

Excavator Attachments

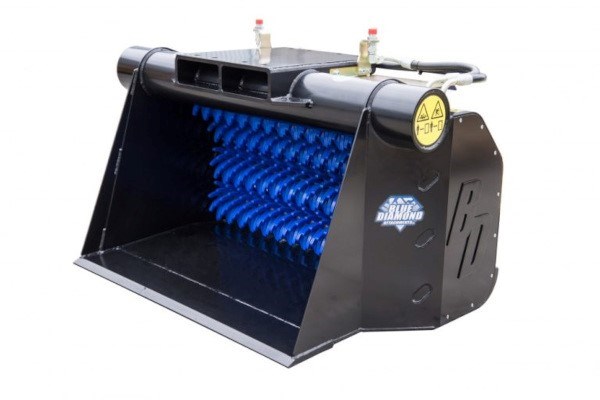

The Blue Diamond® Screening Bucket is used for the screening, aerating, separating and mixing of soils, aggregates, wood chip and compost. The efficient screening process is created by the star rotors agitating the material, causing the fines to flow through the rotating stars leaving the oversized material in the bucket.

Mount sold separately. Hoses and couplers are not included.



Features

  • 1” or smaller material will flow through
  • Horizontal shafts, fitted with poly stars that rotate in the same upwards direction
  • Hardened steel cutting edge
  • 2-position mount plate
  • Mounts available to fit most machines
  • 1-year warranty

Specifications

PART NUMBERMODELHOST MACHINE SIZEMAX FLOW GPMMAX PSIWEIGHTCAPACITY CU FT
14511033" Model 3-33E6,600-11,000142,900557 lbs6.00
14511540" Model 4-40HE11,000-22,000232,9001,104 lbs12.36
14511747" Model 4-47HE22,000-30,000232,9001,179 lbs14.85
14512060" Model 4-60HE28,600-35,000232,9001,585 lbs18.60
14513560" Model 6-60 HDX35,000-44,000422,9001,635 lbs42.38
