TYM Tractors BH70

Equipment Lines / TYM Tractors / Attachments / Backhoes / BH70

Double tap to zoom

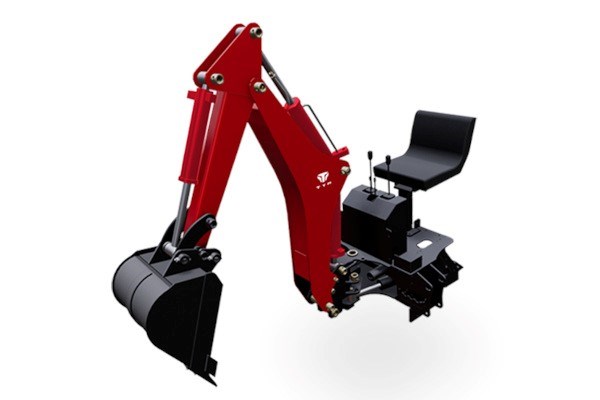

BH70

Backhoes

Compatible: T3025C



Features

Raising the bar in material handling and productivity
The BH150 complements the power and strength of the Series 2 compact tractors, enhancing performance and versatility without compromising safety.

Specifications

Attachments ModelBH70
PERFORMANCE
Digging depth92.2 in. | 2342 mm
Loading height89.3 in. | 2268 mm
Max. leveling angle10°
Angle of departure18°
CAPACITIES & REACH
Backhoe reach117.7 in. | 3134 mm
Swing angle180°
Bucket rotation149°
Stabilizer spread (lowered position)99.3 in. | 2522 mm
Stabilizer spread (raised position)71.5 in. | 1816 mm
DIMENSIONS & WEIGHTS
Transport overhang47 in. | 1194 mm
Transport height (max.)83.5 in. | 2121 mm
