TYM Tractors BH86

Equipment Lines / TYM Tractors / Attachments / Backhoes / BH86

Double tap to zoom

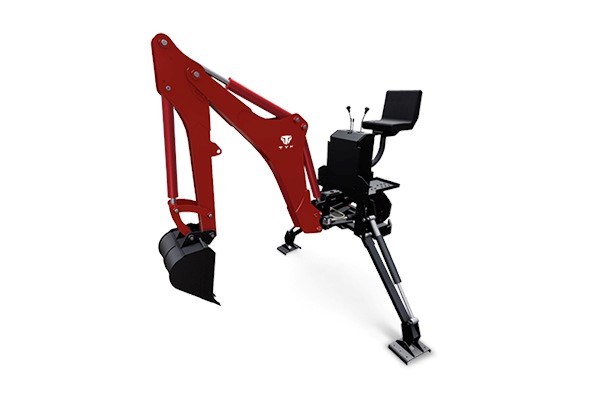

BH86

Backhoes

Compatible: T4058P, T4058PC



Features

Raising the bar in material handling and productivity
For heavy duty tasks, you can depend on TYM BH350 to deliver performance and power. Built to take advantage of the features of TYM Series 3 5835 tractors, the TYM BH350 backhoe attachment is ideal for applications that require the extra power.

Specifications

Attachments ModelBH86
PERFORMANCE
Digging depth103.2 in. | 2621 mm
Loading height92.4 in. | 2347 mm
Max. leveling angle10°
Angle of departure21°
CAPACITIES & REACH
Backhoe reach134.4 in. | 3414 mm
Swing angle180°
Bucket rotation151°
Stabilizer spread (lowered position)88.8 in. | 2256 mm
Stabilizer spread (raised position)68.4 in. | 1737 mm
DIMENSIONS & WEIGHTS
Transport overhang50.4 in. | 1280 mm
Transport height (max.)91.2 in. | 2317 mm
