TYM Tractors BH90

Equipment Lines / TYM Tractors / Attachments / Backhoes / BH90

Double tap to zoom

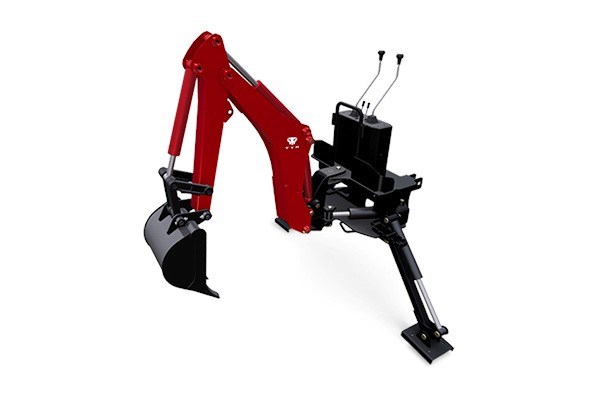

BH90

Backhoes



Features

Raising the bar in material handling and productivity
The TYM BH90 backhoe attachment is engineered to maximize the efficiency and enhance the productivity of your Series 1 sub-compact tractor.

Specifications

Attachments ModelBH90
PERFORMANCE
Digging depth66.5 in. | 1690 mm
Loading height60.8 in. | 1545 mm
Max. leveling angle10°
Angle of departure19°
CAPACITIES & REACH
Backhoe reach89.7 in. | 2280 mm
Swing angle140°
Bucket rotation169°
Stabilizer spread (lowered position)74.8 in. | 1900 mm
Stabilizer spread (raised position)58.2 in. | 1480 mm
DIMENSIONS & WEIGHTS
Transport overhang49.2 in. | 1250 mm
Transport height (max.)60.8 in. | 1545 mm
