TYM Tractors BL3035

Equipment Lines / TYM Tractors / Attachments / Front End Loaders / BL3035

Double tap to zoom

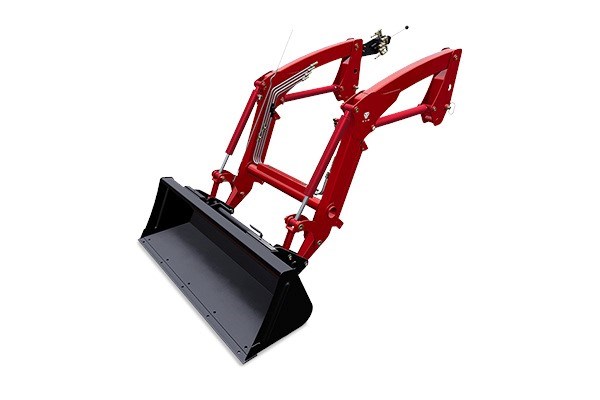

BL3035

Front End Loaders

Compatible: T3025C



Features

Raising the bar in material handling and productivity
The L3035 front-end loader takes advantage of the power and durability of compatible TYM compact tractors. Ideal for tasks that require more strength, these front-end loaders can help you get your tasks done more efficiently.

Specifications

CAPACITIES & REACH
Lift height104.9 in. | 2665 mm |
Max. lift height under level bucket96.3 in. | 2445 mm
Clearance with bucket dumped77.0 in. | 1955 mm
Reach at maximum lift height15.9 in. | 405 mm
Max. dump angle55°
Reach with bucket on ground72.7 in. | 1847 mm
Max. rollback angle35°
Digging depth4.7 in. | 119 mm
Lift capacity at pivot point (max. height)2200 lb | 998 kg
Breakout force at ground level, pivot pins3422 lb | 1552 kg
Bucket rollback force at ground line2557 lb | 1160 kg
Bucket capacity8.1 cu. Ft | 0.23 cu. M
Self levelingNA
Relief valve setting (loader control valve)2446 psi | 172 kg/sq. cm
Compatible bucket sizes66" Front-end loader bucket
DIMENSIONS & WEIGHTS
Overall height in carry position51.0 in. | 1295 mm
Depth of Attachment (to the back of the inner shell)20.9 in. | 530 mm
Height of Attachment20.9 in. | 530 mm
Length of Attachment (to pivot pin)28.0 in. | 712 mm
Weight of boom & quick attach mechanism (1)496 lb | 225 kg
Weight of mounting frame (2)269 lb | 122 kg
Weight of bucket (3)110 kg | 243 lb
Loader total weight (1+2+3)1008 lb | 457 kg
Lift cylinder2.2 × 1.2 in. | 55 × 30 mm
Bucket cylinder2.0 × 1.2 in. | 50 × 30 mm
Attachment used for specification62 in. | 1570 mm
CYCLE TIMES
Boom raising time4.4 sec
Boom lowering time3.1 sec
Bucket rollback time2.6 sec
Bucket dumping time4.2 sec
