TYM Tractors L4058PC

Equipment Lines / TYM Tractors / Attachments / Front End Loaders / L4058PC

Double tap to zoom

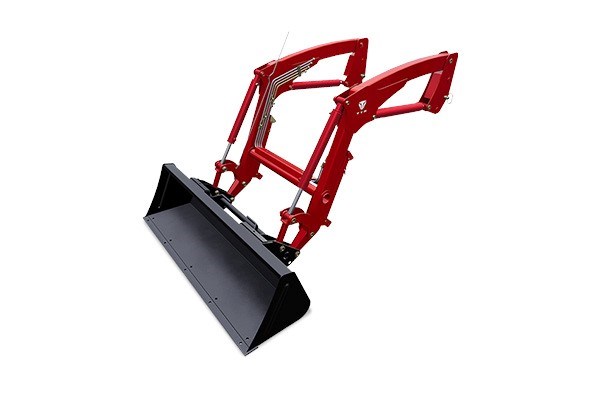

L4058PC

Front End Loaders

Compatible: T4058PC



Features

Raising the bar in material handling and productivity
The BL350 front-end loader takes advantage of the power and durability of TYM 5835 tractors. Ideal for tasks that require more strength, the BL350 front-end loader can help you get your tasks done more efficiently.

Specifications

CAPACITIES & REACH
Lift height2984 mm | 117.5 in.
Max. lift height under level bucket2766 mm | 108.9 in.
Clearance with bucket dumped2275 mm | 89.6 in.
Reach at maximum lift height541 mm | 21.3 in.
Max. dump angle55°
Reach with bucket on ground1952 mm | 76.9 in.
Max. rollback angle41°
Digging depth120 mm | 4.7 in.
Lift capacity at pivot point (max. height)1559 kgf | 3437 lb
Breakout force at ground level, pivot pins2151 kgf | 4742 lb
Bucket rollback force at ground line1829 kgf | 4032 lb
Bucket capacity0.27 cu. m | 9.5 cu. ft
Self levelingNA
Relief valve setting (loader control valve)175 kg/sq. cm | 2489 psi
Compatible bucket sizes66" Front-end loader bucket
DIMENSION & WEIGHTS
Overall height in carry position1324 mm | 52.1 in.
Depth of Attachment (to the back of the inner shell)530 mm | 20.9 in.
Height of Attachment530 mm | 20.9 in.
Length of Attachment (to pivot pin)690 mm | 28.2 in.
Weight of boom & quick attach mechanism (1)325 kg | 717 lb
Weight of mounting frame (2)151 kg | 334 lb
Weight of bucket (3)114 kg | 251 lb
Loader total weight (1+2+3)590 kg | 1300 lb
Lift cylinder66 × 35 mm | 2.6 × 1.4 in.
Bucket cylinder60 × 35 mm | 2.4 × 1.4 in.
Attachment used for specification1830 mm | 72 in.
CYCLE TIMES
Boom raising time5.2 sec
Boom lowering time3.7 sec
Bucket rollback time2.3 sec
Bucket dumping time3.5 sec
