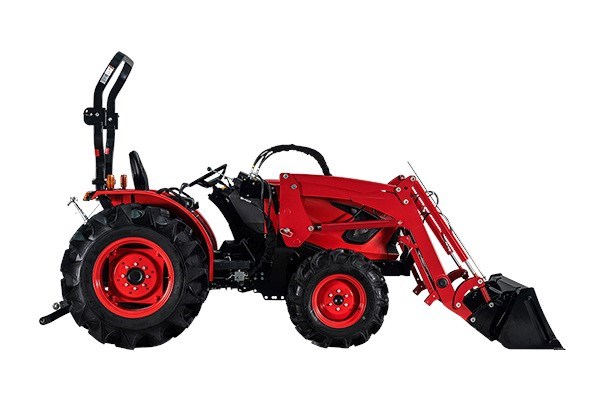

TYM Tractors T3025
T3025
Series 3 Compact Tractors
- Engine power: 24 hp
- Hitch lift capacity: 3307 lb
A compact tractor robust enough to take on challenges of all sizes
The T3025 tractor is designed for peak performance through versatility and durability. Offering customizable options throughout, this mid-sized Series 3 compact tractor helps you achieve your goals in applications of varying intensities.
Features
- New iconic hood
- Comfortable suspension seat
- Toolbox
- Responsive forward/reverse HST
- High-capacity fuel tank
- High visibility instrumental panel
Factory-installed joystick
The standard loader joystick helps perform various tasks. By installing a 3rd function kit as needed, it enables even more diverse operations, such as grapple work.
Cruise control
The cruise control feature allows you to set and maintain the engine RPM regardless of the tractor’s load conditions.
Lift more
Don’t let the size fool you. The T3025 ROPS offers 3,307lb of hitch lift capacity of and 2,200lb of bucket lift capacity.
TYM power
Our TYM diesel is not just smooth, quiet and Tier 4 Certified. It puts out 24 engine hp and 21 PTO hp. Plus it’s covered by our 6-year powertrain warranty.
Simple PTO
The Power Take Off (PTO) switch is designed to engage and disengage easily. This will help you with smoother operation and less jerking when using attachments.
Control
The ergonomic joy-stick allows for better control for multiple functions, reducing muscle strain during long hours in the field.
Specifications
| Tractors Model | T3025 |
| Engine manufacturer | TYM T1700N6 |
| Type | Natural aspiration |
| Engine power | 24 hp | 18 kW |
| PTO power | 21 hp | 15.7 kW |
| Rated engine speed | 2100 rpm |
| No. of cylinders | 3 |
| Displacement | 104.5 cu. in. | 1714 cc |
| Air cleaner | Dry element |
| Alternator | 12V, 50A |
| Fuel system | IDI |
| HYDRAULIC SYSTEM | |
| Pump type | Dual gear pump |
| Implement flow | 7.5 gpm | 28.4 L/min |
| Steering flow | 4.0 gpm | 15.1 L/min |
| Total flow | 11.5 gpm | 43.5 L/min |
| Category, 3-point hitch | I |
| Hitch lift capacity | 3307 lb | 1500 kg |
| Hitch lift capacity at 24 inches behind link ends | 2425 lb | 1100 kg |
| Lift control type | Position |
| No. of standard remote valves | Loader: 4 / Rear: 0 (Optional, up to 4) |
| POWERTRAIN | |
| Transmission type | 2515R: Synchromesh 2515H: HST |
| No. of speeds | 2515R: F12 x F12 2515H: 3-Range |
| Max. traveling speed | 2515R: 11.7 mph | 18.8 km/h 2515H: 16.7 mph | 26.8 km/h |
| Brakes | Wet, Multi disc |
| Steering | Hydrostatic |
| Clutch | Dry single plate / N/A |
| PTO | |
| PTO type | Independent |
| PTO control | Electric/Hydro |
| PTO rear | 540 rpm |
| CAPACITIES | |
| Fuel tank | 8.7 gal | 33 L |
| Coolant | 5.3 qt | 5 L |
| Crankcase | 4.5 qt | 4.3 L |
| Transmission/Hydraulics system | 8.9 gal | 34 L (Synchro) 9.8 gal | 37 L (HST) |
| Front axle | 6.8 qt | 6.4 L |
| DIMENSIONS & WEIGHTS | |
| Overall length with 3-point hitch | 121 in. | 3071 mm |
| Overall width | 56.3 in. | 1430 mm |
| Wheelbase | 65.7 in. | 1670 mm |
| Height to top of ROPS | 97.2 in. | 2471 mm |
| Min. ground clearance | 14.4 in. | 366 mm |
| Min. turn radius with brakes | - |
| Min. turn radius without brakes | 105.5 in. / 2680 mm |
| Weight with ROPS | 1347 kg | 2969.6 lb |
| STANDARD TIRES | |
| R1 Agricultural - Front | 8-16 |
| R1 Agricultural - Rear | 12.4-24 |
| R3 Turf - Front | 27x8.5-15 |
| R3 Turf - Rear | 41x14.00 |
| R4 Industrial - Front | 10-16.5 |
| R4 Industrial - Rear | 420/70-24 |
