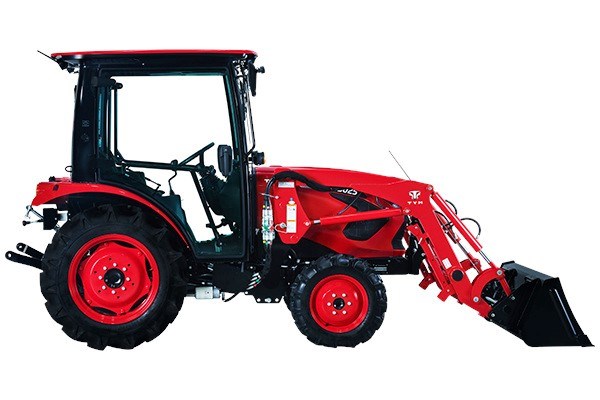

A compact tractor robust enough to take on challenges of all sizes
The 3025C tractor is designed for peak performance through versatility and durability. Offering customizable options throughout, this mid-sized Series 3 compact tractor helps you achieve your goals in applications of varying intensities.
The highly economical TYM engine
The powerful 24-horsepower TYM engine eliminates the need for regeneration, reducing maintenance costs and making servicing easier and more convenient.
The most powerful 3-point hitch lift capacity
With the most powerful 3-point hitch lift capacity in its class, it can easily handle heavy implements and perform effortlessly in any work environment.
Cruise control
The cruise control feature allows you to set and maintain the engine RPM regardless of the tractor's load conditions.
Factory-installed joystick
The standard loader joystick helps perform various tasks. By installing a 3rd function kit as needed, it enables even more diverse operations, such as grapple work.
A cabin designed for a comfortable working environment in any condition
With the widest and most comfortable space in its class, this tractor maximizes operator comfort. It also offers enhanced visibility with standard heating and air conditioning.
External lever to adjust rear attachments
Along with in-cabin controls, this tractor has an external position lever near the 3-point hitch. Operators can adjust attachment positions immediately after connection without returning to the cabin, enabling quick and convenient attachment switching, which enhances tractor versatility.
| Tractors Model | T3025C |
| Engine manufacturer | TYM T1700N6 |
| Type | Natural aspiration |
| Engine power | 24 hp | 18 kW |
| PTO power | 21 hp | 15.7 kW |
| Rated engine speed | 2100 rpm |
| No. of cylinders | 3 |
| Displacement | 104.5 cu. in. | 1714 cc |
| Air cleaner | Dry element |
| Alternator | 12V, 70A |
| Fuel system | IDI |
| HYDRAULIC SYSTEM | |
| Pump type | Dual gear pump |
| Implement flow | 7.7 gpm | 29.3 L/min |
| Steering flow | 4.2 gpm | 15.8 L/min |
| Total flow | 11.9 gpm | 45.1 L/min |
| Category, 3-point hitch | I |
| Hitch lift capacity | 3306 lb | 1500 kg |
| Hitch lift capacity at 24 inches behind link ends | 2425 lb | 1100 kg |
| Lift control type | Position |
| No. of standard remote valves | Loader: 4 / Rear: 0 |
| POWERTRAIN | |
| Transmission type | HST |
| No. of speeds | 3-Range |
| Max. traveling speed | 14.6 mph | 23.6 km/h |
| Brakes | Wet, Multi disc |
| Steering | Hydrostatic |
| Clutch | N/A |
| PTO | |
| PTO type | Independent |
| PTO control | Wet/Multi disc |
| PTO rear | 540 rpm |
| CAPACITIES | |
| Fuel tank | 7.1 gal | 27 L |
| Coolant | 5.3 qt | 5 L |
| Crankcase | 4.5 qt | 4.3 L |
| Transmission/Hydraulics system | 9.8 gal | 37 L |
| Front axle | 6.8 qt | 6.4 L |
| DIMENSIONS & WEIGHTS | |
| Overall length with 3-point hitch | 120.9 in. | 3071 mm |
| Overall width | 56.6 in. | 1413 mm |
| Wheelbase | 65.7 in. | 1670 mm |
| Height to top of ROPS | - |
| Height to top of cabin | 89.3 in. | 2267 mm |
| Min. ground clearance | 13.1 in. | 334 mm |
| Min. turn radius with brakes | (L) 105.51 in. | 2680 mm / (R) 104.72 in. | 2660 mm |
| Min. turn radius without brakes | (L) 105.51 in. | 2680 mm / (R) 104.72 in. | 2660 mm |
| Weight with ROPS | - |
| Weight with cab | 3313 lb | 1503 kg |
| STANDARD TIRES | |
| R1 Agricultural - Front | 7-16, 6PR |
| R1 Agricultural - Rear | 11.2-24, 8PR |
| R3 Turf - Front | - |
| R3 Turf - Rear | - |
| Golf Tires - Front | 27x8.5-15, 6PR |
| Golf Tires - Rear | 41x14.00, 4PR |
| R4 Industrial - Front | 25x8.5-14, 6PR |
| R4 Industrial - Rear | 380/70-19.5, 6PR |
