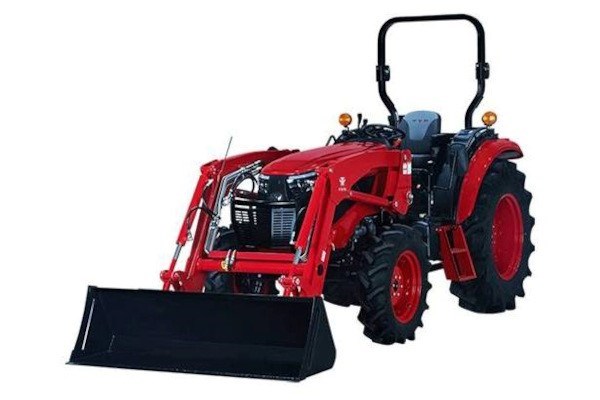

TYM Tractors T4058P
T4058P
Series 4 Compact Tractors
- Engine power: 58 hp
- Hitch lift capacity: 4409 lb
A premium compact utility tractor that delivers power and efficiency
When it comes to all-around productivity, look no further than the T4058P. This compact tractor is designed to boost output, delivering impressive efficiency and deluxe features that have become the hallmark of the TYM Series 4.
Features
- New iconic hood
- Digital instrument panel
- Electronic 4WD engagement
- Tilt steerling wheel
- Comfortable suspension seat
- External hitch switch
Eco-friendly TYM Tier 4 engine
Equipped with the Turbo charged company designed-and-made TYM engine, the tractor is designed to be eco-friendly and fuel efficient but makes no compromise on performance and reliability.
MYTYM telematics system
Through MYTYM's remote diagnostics service, check the real-time monitoring, enhanced maintenance and improved operational efficiency.
Power shuttle and D-clutch
Power shuttle enhances efficiency for tasks requiring frequent directional changes in tighter spaces without stepping on the clutch pedal and enhance the manueuveratility.
Electronic hydraulic control system
The system allows for easy control of operations for 3pt-hitch control, turn/back up and draft sensitivity adjustement and giving operators full control over their task at hand.
4-Ports front/rear external hydraulic valve
The 4-port rear hydraulic valves support various implements, simplifying tasks such as tilling, plowing, and cargo transport.
Specifications
| Tractors Model | T4058P |
| ENGINE | |
| Engine manufacturer | TYM T2300T1-UTR_4 |
| Type | Turbo charger |
| Engine power | 58 hp | 43.3 kW |
| PTO power | 48 hp | 35 kW |
| Rated engine speed | 2600 rpm |
| No. of cylinders | 4 |
| Displacement | 139.5 cu. in. | 2287 cc |
| Air cleaner | Dry element |
| Alternator | 12V, 70A |
| Fuel system | IDI |
| HYDRAULIC SYSTEM | |
| Pump type | Single gear pump |
| Implement flow | 11.4 gpm | 43.2 L/min |
| Steering flow | 5.13 gpm | 19.44 L/min |
| Total flow | 16.5 gpm | 62.6 L/min |
| Category, 3-point hitch | II |
| Hitch lift capacity | 4409 lb | 2000 kg |
| Hitch lift capacity at 24 inches behind link ends | 3748 lb | 1700 kg |
| Lift control type | Position |
| No. of standard remote valves | Loader: 4 / Rear: 4 |
| POWERTAIN | |
| Transmission type | Power shuttle |
| No. of speeds | F12 x R12 |
| Max. traveling speed | 24.04 mph | 38.7 km/h |
| Brakes | Wet, Multi disc |
| Steering | Hydrostatic |
| Clutch | Wet Multi disc |
| PTO | |
| PTO type | Independent |
| PTO control | Wet, Multi-disc |
| PTO rear | 540 rpm |
| CAPACITIES | |
| Fuel tank | 15.3 gal | 58 L |
| Coolant | 6.2 qt | 5.9 L |
| Crankcase | 4.7 qt | 4.5 L |
| Transmission/Hydraulics system | 11.6 gal | 44 L |
| Front axle | 6.8 qt | 6.4 L |
| DIMENSIONS & WEIGHTS | |
| Overall length with 3-point hitch | 141.5 in. | 3595 mm |
| Overall width | 68.9 in. | 1750 mm |
| Wheelbase | 78.7 in. | 2000 mm |
| Height to top of ROPS | 104.7 in. | 2660 mm |
| Height to top of cabin | |
| Min. ground clearance | 18.1 in. | 460 mm |
| Min. turn radius with brakes | (L) 121.9 in. | 3098 mm / (R) 125.3 in. | 3184 mm |
| Min. turn radius without brakes | (L) 139.7 in. | 3550 mm / (R) 141.9 in. | 3606 mm |
| Weight with ROPS | 4506.2 lb | 2044 kg |
| Weight with cab | - |
| STANDARD TIRES | |
| R1 Agricultural - Front | 9.5-20 |
| R1 Agricultural - Rear | 14.9-28 |
| R4 Industrial - Front | 10.5/80-18 |
| R4 Industrial - Rear | 16.9-24 |
| Golf Tires - Front | 29x12.5-15 |
| Golf Tires - Rear | 44x18.00-20 |
