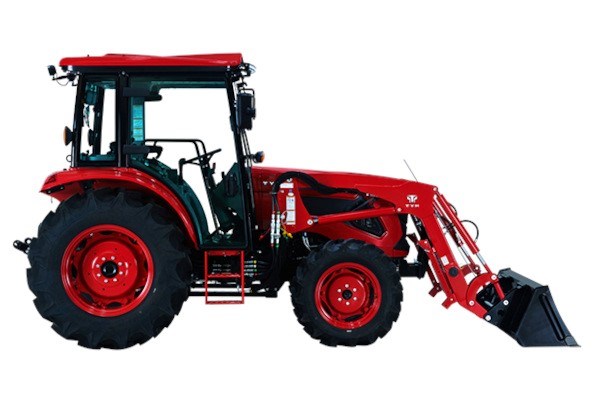

TYM Tractors T4058PC

Double tap to zoom

T4058PC

Series 4 Compact Tractors

  • Engine power:  58 hp
  • Hitch lift capacity:  4409 lb

A premium compact tractor that delivers power and efficiency
When it comes to all-around productivity, look no further than the T4058PC. This compact tractor is designed to boost output, delivering impressive efficiency and deluxe features that have become the hallmark of the TYM Series 4.



Features

  • New iconic hood
  • Tilt steerling wheel
  • Electronic 4WD engagement
  • Digital instrument panel
  • Comfortable suspension seat
  • External hitch switch



Eco-friendly TYM Tier 4 engine

Equipped with the Turbo charged company designed-and-made TYM engine, the tractor is designed to be eco-friendly and fuel efficient but makes no compromise on performance and reliability.

MYTYM telematics system

Through MYTYM's remote diagnostics service, check the real-time monitoring, enhanced maintenance and improved operational efficiency.

Power shuttle and D-clutch

Power shuttle enhances efficiency for tasks requiring frequent directional changes in tighter spaces without stepping on the clutch pedal and enhance the manueuveratility.

Electronic hydraulic control system

The system allows for easy control of operations for 3pt-hitch control, turn/back up and draft sensitivity adjustement and giving operators full control over their task at hand.

Front LED work lighting bar

The cabin version introduces an LED bar-type front worklight, ideal for low-light tasks and extended operational hours and enhance the productivity.

6-Ports front/rear external hydraulic valve with 2-buttons joystick

The 6-port front selective control valves allows for a wide variety of implements to be installed. This allows for easy and efficient grapple operation.

Specifications

Tractors ModelT4058PC
ENGINE
Engine manufacturerTYM T2300T1-UTC_4
TypeTurbo charger
Engine power58 hp | 43.3 kW
PTO power48 hp | 35 kW
Rated engine speed2600 rpm
No. of cylinders4
Displacement139.5 cu. in. | 2287 cc
Air cleanerDry element
Alternator12V, 70A
Fuel systemIDI
HYDRAULIC SYSTEM
Pump typeSingle gear pump
Implement flow11.4 gpm | 43.2 L/min
Steering flow5.13 gpm | 19.44 L/min
Total flow16.5 gpm | 62.6 L/min
Category, 3-point hitchII
Hitch lift capacity4409 lb | 2000 kg
Hitch lift capacity at 24 inches behind link ends3748 lb | 1700 kg
Lift control typePosition
No. of standard remote valvesLoader: 6 / Rear: 6
POWERTAIN
Transmission typePower shuttle
No. of speedsF12 x R12
Max. traveling speed24.04 mph | 38.7 km/h
BrakesWet, Multi disc
SteeringHydrostatic
ClutchWet Multi disc
PTO
PTO typeIndependent
PTO controlWet, Multi-disc
PTO rear540 rpm
CAPACITIES
Fuel tank15.3 gal | 58 L
Coolant6.2 qt | 5.9 L
Crankcase4.8 qt | 4.5 L
Transmission/Hydraulics system11.62 gal | 44 L
Front axle6.8 qt | 6.4 L
DIMENSIONS & WEIGHTS
Overall length with 3-point hitch141.5 in. | 3595 mm
Overall width68.9 in. | 1750 mm
Wheelbase78.7 in. | 2000 mm
Height to top of ROPS-
Height to top of cabin99.2 in. | 2520 mm
Min. ground clearance18.1 in. | 460 mm
Min. turn radius with brakes(L) 121.9 in. | 3098 mm / (R) 125.3 in. | 3184 mm
Min. turn radius without brakes(L) 139.7 in. | 3550 mm / (R) 141.9 in. | 3606 mm
Weight with ROPS-
Weight with cab4951.5 lb | 2246 kg
STANDARD TIRES
R1 Agricultural - Front9.5-20
R1 Agricultural - Rear14.9-28
R4 Industrial - Front10.5/80-18
R4 Industrial - Rear16.9-24
Golf Tires - Front29x12.5-15
Golf Tires - Rear44x18.00-20
