BUILT STRONGER, SMARTER, AND MORE COMFORTABLE

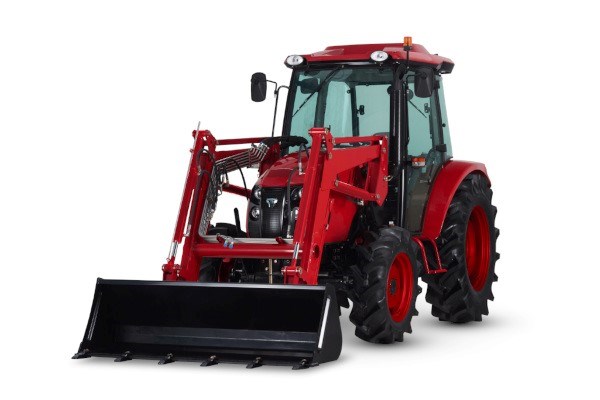

Increased power output and maximized lift capabilities define the Series 5 tractors and enable you to achieve your goals. This compact utility tractor is designed to boost output, delivering impressive efficiency and deluxe features that have become the hallmark of TYM.
4-cylinder, liquid-cooled Deutz diesel engine
Built on precise German engineering, the Deutz engine uses Diesel Oxidation Catalysts (DOC) to convert carbon and particulate matter into less harmful emissions. This eliminates the need for regeneration cycles, minimizing maintenance requirements, downtime, and the risk of repair.
New designed steel hood
The new steel hood offers both larger side vents to keep the engine cool, but also protects your engine from falling debris for added protection and durability.
Upgraded loader valve
Upgraded Walvoil® hydraulic valves come standard with 6 port true 3rd function. This will ensure efficient and precise hydraulic operations for all of your attachments.
Relocated 3-point external switch
You will have an easier time connecting rear attachments with the 3-point switch placed on the rear fender.
Increased radiator capacity
The upsized radiator holds about 2.8 gallons (10.5 liters), keeping your components under the hood cooler under heavy loads to extend engine life.
Standard TYM Telematics
TYM’s proprietary telematics system and smartphone app lets you monitor vital tractor systems, offers remote start for cold mornings, GPS route guidance and more.
New defrost HVAC vents
No more wiping the inside windshield of your cab on hot, humid days or frost on cold mornings. Plus, we’ve increased cab space, improved the user-friendly cockpit design, and more.
| Tractors Model | T5075 |
| ENGINE | |
| Engine manufacturer | Deutz TCD 2.9L |
| Type | Turbo charger |
| Engine power | 74.3 hp | 55.4 kW |
| PTO power | 67.1 hp | 50.0 kW |
| Rated engine speed | 2600 rpm |
| No. of cylinders | 4 |
| Displacement | 178.5 cu. in. | 2925 cc |
| Air cleaner | Dry element |
| Alternator | 12V, 95A |
| Fuel system | CRDI |
| HYDRAULIC SYSTEM | |
| Pump type | Dual gear pump |
| Implement flow | 10.3 gpm | 39.1 L/min |
| Steering flow | 5.8 gpm | 22 L/min |
| Total flow | 16.1 gpm | 61.1 L/min |
| Category, 3-point hitch | II |
| Hitch lift capacity | 5515 lb | 2320 kg |
| Hitch lift capacity at 24 inches behind link ends | 3418 lb | 1550 kg |
| Lift control type | Position/Draft |
| No. of standard remote valves | 4 |
| POWERTAIN | |
| Transmission type | Synchro or Power shuttle |
| No. of speeds | F16 x R16 (Creep interlock) |
| Max. traveling speed | 22.07 mph | 36.6 km/h |
| Brakes | Wet, Multi disc |
| Steering | Hydrostatic |
| Clutch | M: Dry Single Plate PS: Wet Multi Plate |
| PTO | |
| PTO type | Independent |
| PTO control | Electro-hydraulic |
| PTO rear | 540/750 rpm |
| CAPACITIES | |
| Fuel tank | 23.7 gal | 90 L |
| Coolant | 11.1 qt | 10.5 L |
| Crankcase | 8.5 qt | 9 L |
| Transmission/Hydraulics system | 17.4 gal | 66 L |
| Front axle | 17.3 qt | 16.4 L |
| DIMENSIONS & WEIGHTS | |
| Overall length with 3-point hitch | 168.1 in. | 4269 mm |
| Overall width | 92.3 in. | 2345 mm |
| Wheelbase | 86.1 in. | 2188 mm |
| Height to top of cabin | 104.9 in. | 2664 mm |
| Height to top of ROPS | - |
| Min. ground clearance | 18.4 in. | 467 mm |
| Min. turn radius with brakes | 139.0 in. | 3530 mm |
| Min. turn radius without brakes | 161.4 in. | 4100 mm |
| Weight with cab | 6316.2 lb | 2865 kg |
| Weight with ROPS | - |
| STANDARD TIRES | |
| R1 Agricultural - Front | 280/85R24 |
| R1 Agricultural - Rear | 420/85R30 |
| R4 Industrial - Front | 15-19.5 |
| R4 Industrial - Rear | 18.4-24 |
